Resin 3D Printer
Resin 3D printers produce astonishing detail — miniatures, jewellery masters, dental models and small precise parts — but they work very differently from filament printers and come with extra steps and safety needs. This guide explains the technology and the specifications so you can choose a machine that suits what you want to print.
How resin printers work
| Type | How it cures resin | Typical use |
|---|---|---|
| MSLA (masked SLA / LCD) | A UV light shines through an LCD screen that masks each layer | Most consumer resin printers; miniatures and hobby parts |
| DLP | A digital projector flashes each layer | Some desktop and professional machines |
| Laser SLA | A laser traces each layer | Professional and engineering printers |

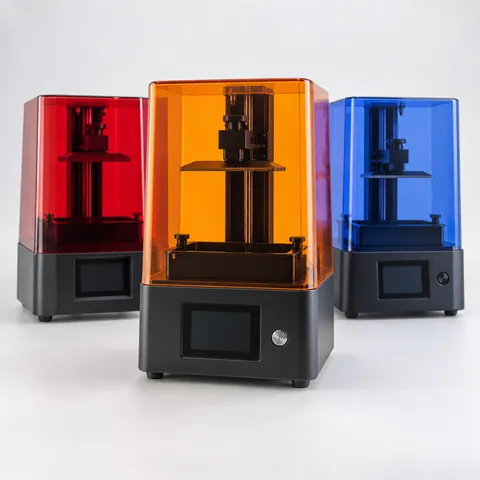

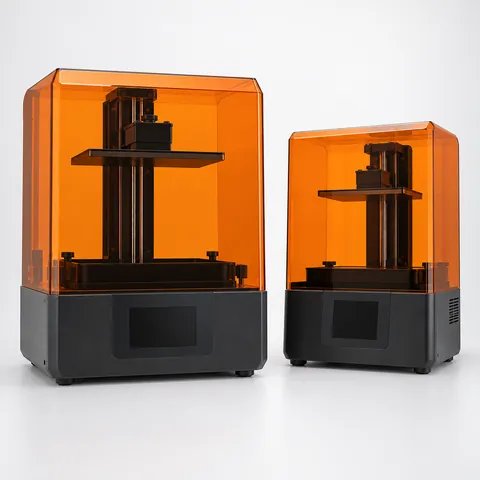

All three build parts layer by layer from liquid photopolymer resin in a vat, usually printing upside down from a build plate. MSLA printers dominate the hobby market because the whole layer is exposed at once, so print time depends mostly on height rather than how many parts are on the plate. Compare entry-level MSLA printers and large-format resin printers.
Resolution explained
| Spec | What it means |
|---|---|
| Screen resolution (e.g. “8K”) | Number of pixels on the LCD — meaningful only together with screen size |
| XY pixel size (µm) | The size of each pixel on the build plate — smaller means finer horizontal detail |
| Layer height (Z) | Typically 0.025–0.1 mm; thinner layers reduce stair-stepping on curves |
| Anti-aliasing | Software smoothing of pixel edges |
A larger screen with the same pixel count has bigger pixels, so a high “K” number on a large printer does not necessarily mean finer detail than a smaller printer with fewer pixels. XY pixel size is the fairer comparison. Real-world detail also depends on the resin, exposure settings and light uniformity.
Build volume
Build volume is usually given as width × depth × height in millimetres. Miniature painters often find a compact printer enough, since dozens of figures fit on one plate. Cosplay parts, busts and terrain need a larger plate or more height. Larger printers use more resin to fill the vat and larger, more expensive screens and films.

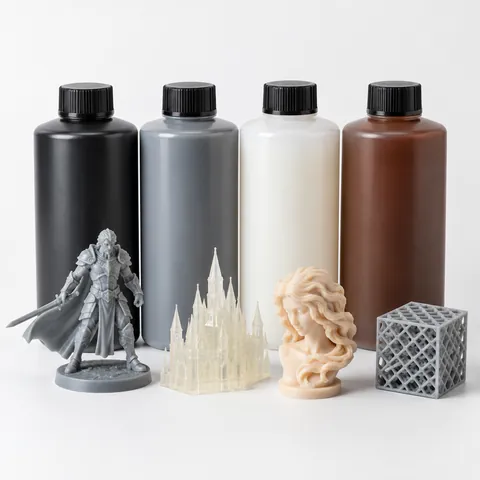

Resin types
| Resin | Properties |
|---|---|
| Standard | Good detail, fairly brittle; general models |
| ABS-like / tough | Less brittle; functional parts and snap fits |
| Water-washable | Cleans with water instead of alcohol — waste water still needs proper disposal |
| Flexible / elastic | Rubber-like parts |
| High-detail / 8K | Tuned for miniatures |
| Castable | Burns out cleanly for jewellery casting |
| Dental and biocompatible | Specialist use under professional regulations |
See resin types. Always use exposure settings suited to your printer and resin, and store resin away from light.
Post-processing
- Remove the part from the build plate (gloves on).
- Wash in isopropyl alcohol or the resin’s recommended cleaner to remove uncured resin.
- Remove supports.
- Post-cure under UV light to reach full strength.
- Sand, prime and paint as needed.

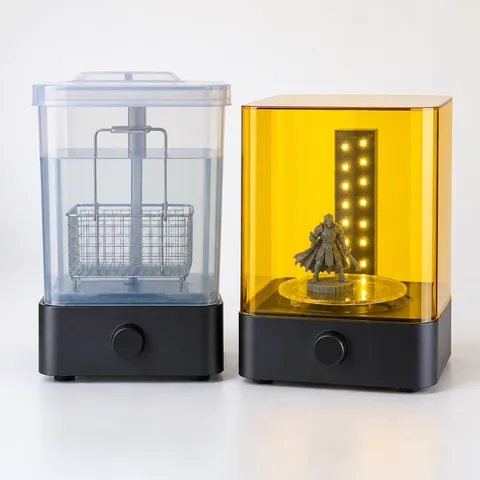

A wash-and-cure station makes the washing and curing steps more consistent.
Safety

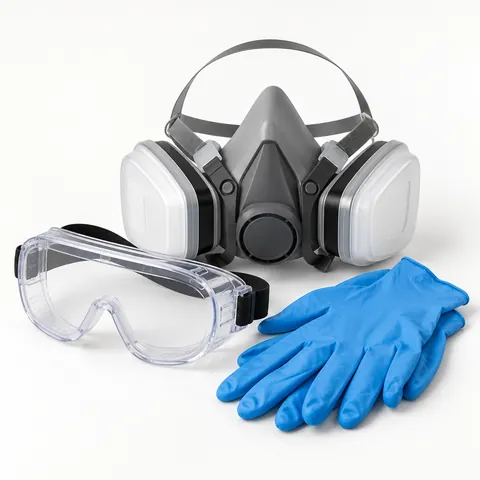

Uncured liquid resin can irritate skin and cause allergic skin sensitisation with repeated contact, and resins give off fumes. Manufacturers’ safety data sheets typically recommend nitrile gloves, eye protection and good ventilation, and advise against printing in living or sleeping spaces. Cured parts are much safer to handle, but uncured resin, contaminated alcohol and paper towels need proper disposal — never pour resin or resin-contaminated liquid down the drain; cure it in sunlight or UV first and follow local rules. See resin safety gear.
Running costs and consumables
- Resin — the main ongoing cost.

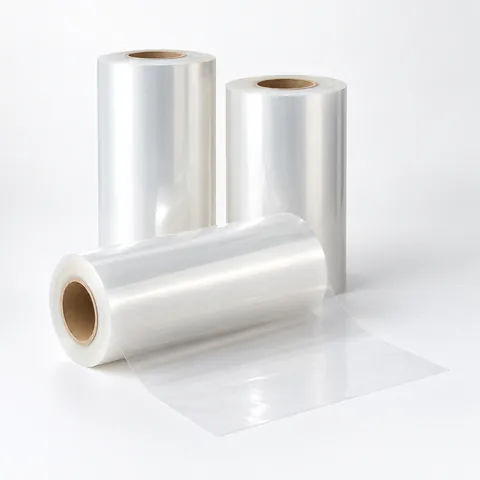

- Release film (FEP, nFEP or ACF) in the vat — wears and needs replacing; see replacement films.
- LCD screens on MSLA printers wear with use and can be replaced.
- Isopropyl alcohol or cleaning fluid.
- Gloves, paper towels and filters.
Resin vs filament (FDM)
Filament printers are simpler, cleaner and better for large, strong functional parts; resin printers produce much finer detail and smoother surfaces on small parts but involve messier post-processing and more safety precautions. Many makers eventually own one of each.
Who this guide is for
Hobbyists, miniature painters, jewellers and makers choosing a first or second resin printer. We explain the technology and specifications; we do not run hands-on tests. Check each printer’s specifications, supported resins, warranty and support on the merchant or manufacturer page.
Frequently asked questions
What is the difference between MSLA and SLA?
MSLA exposes a whole layer through an LCD mask; laser SLA traces each layer with a laser.
Does a higher “K” mean better detail?
Not by itself — compare the XY pixel size in microns.
Is resin printing safe at home?
With gloves, eye protection, ventilation and proper disposal, many hobbyists print safely; follow the resin’s safety data sheet.
Do I need a wash and cure station?
Not strictly, but it makes post-processing easier and more consistent.
How long do FEP films last?
It varies with use; replace them when scratched, cloudy or punctured.
Does this site test printers?
No. We explain types and specifications and do not run hands-on tests. Check each merchant’s page for current details.
